Runout in Engineering: Concepts, Measurement, and GD&T Applications

Runout is a critical concept in engineering and manufacturing that affects the precision and performance of mechanical components. Whether you’re working with shafts, gears, or other rotating parts, understanding runout and how to measure it is essential for ensuring high-quality products. Therefore, this blog explores the different types of runout, how it’s measured, and its implications in the context of GD&T.

What is Runout?

Runout refers to the deviation or variation in the rotational motion of a part or surface, typically measured as the difference between the intended circular motion and the actual motion of a rotating object. In simpler terms, it indicates how much a part, like a shaft or a wheel, wobbles or deviates from its ideal rotational path. Runout is commonly observed in rotating components like gears, shafts, and pulleys, where precision is critical for smooth operation.

Runout in GD&T: Symbol and Example

In GD&T, runout is a controlled feature that ensures the consistent and precise rotation of a part or component. It specifies the allowable variation in the surface or axis of a rotating part as it rotates around a reference point or axis. Runout is typically controlled using two main symbols: circular runout and total runout. These symbols define the acceptable deviation in the geometry of the feature.

1. Circular Runout

This symbol controls the variation of a feature at individual points along a circular surface as it rotates. It ensures that the points on the surface stay within a specified radial tolerance from the datum axis.

Example:

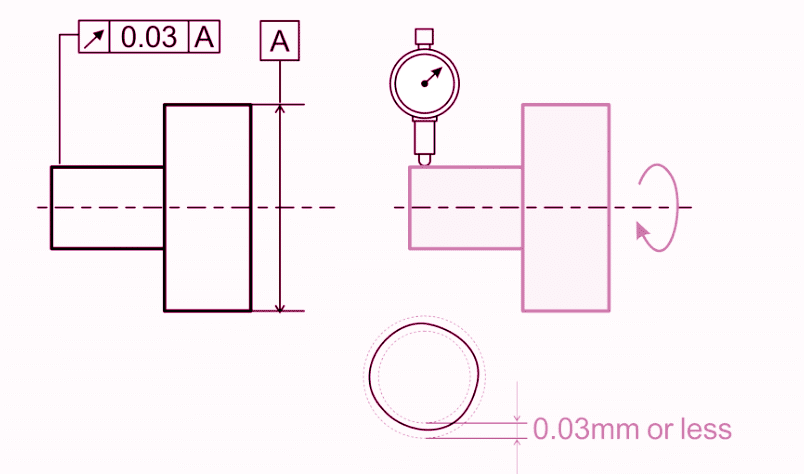

Let’s take a cylindrical feature, such as a shaft, where circular runout is applied.

• 0.03: This is the 宽容 for the radial variation allowed for the feature. In this case, the radial runout must not exceed 0.03 mm.
• Datum 一个: The datum axis, which is the reference axis that the feature will rotate around.

All points on the surface of the cylindrical feature must lie within a circular tolerance zone, defined by ±0.03 mm from the datum axis, as the feature rotates. A shaft is rotating around its datum axis. The measurement shows that the variation at various points along the surface lies within the 0.03 mm tolerance zone. If it does, the part is considered to be in spec.

2. Total Runout:

The total runout symbol is used when more stringent control is needed. It governs the entire surface of a feature as it rotates, controlling the total variation across the entire surface. This requires that all points on the feature stay within a cylindrical tolerance zone.

Example:

Let’s extend the example to total runout.

• 0.03: The tolerance for total runout, allowing a total deviation of 0.03 mm across the entire surface of the cylindrical feature.
• Datum A: The reference axis for rotation.

Instead of only checking the radial variation at individual points, the total runout tolerance ensures that the entire surface of the cylindrical feature remains within the 0.03 mm cylindrical tolerance zone as it rotates around the datum axis. In this case, the technician would measure multiple points along the length of the cylindrical feature. The entire surface must be within a cylindrical tolerance zone with a diameter of 0.03 mm. If any point deviates outside this zone, the part fails the inspection.

In general, circular runout defines a 2D tolerance for variation at specific points along a circular surface. As the feature rotates around the reference axis, each point on the surface must remain within a circular tolerance zone, ensuring minimal radial deviation. On the other hand, total runout establishes a 3D cylindrical tolerance zone that governs the entire surface of the feature. As the feature rotates, the entire surface must stay within the specified cylindrical tolerance zone, ensuring consistent variation across the whole surface.

Types of Runout

Runout can manifest in different ways depending on the direction of deviation or the type of part being measured. The main types of runout include:

Radial Runout

Radial runout refers to the deviation of a rotating part’s outer surface from its intended circular path when measured at a specific point along the radius. This type of runout is concerned with how much the distance from the center of rotation to the outer surface varies as the part rotates. It’s critical for ensuring smooth rotation, particularly in components like wheels, gears, and pulleys, where uniformity is key for proper function.

Axial Runout

Axial runout, also called end play or wobble, measures the deviation in the part’s axial alignment as it rotates. Essentially, this runout occurs when the axis of rotation is not perfectly aligned with the central axis of the part. Axial runout can cause issues in systems requiring tight alignment, such as bearings or shafts, where misalignment may lead to vibrations or uneven wear.

Lateral Runout

Lateral runout measures the side-to-side deviation of a part when it is rotated, indicating how much the part moves laterally in relation to its axis. It’s often observed in systems where the part is mounted off-center or when there are inconsistencies in the manufacturing of the part. Lateral runout can cause instability or vibration, especially in rotating machinery.

Shaft Runout

Shaft runout specifically refers to the combined effect of both radial and axial runout on a shaft. It measures the overall deviation of a shaft’s axis from its ideal rotational path. Shaft runout is a key factor in determining the overall precision and performance of rotating equipment, as even slight deviations can lead to imbalances, vibrations, and premature wear.

How to Measure Runout?

Tools for Measurement

Measuring runout begins with selecting the right tool for the job. The most common tools include dial indicators, coordinate measuring machines, and optical comparators or laser scanners. Dial indicators are typically the go-to choice due to their high accuracy in detecting small displacements, especially in rotational parts. CMMs are ideal for more complex measurements or larger parts, offering three-dimensional measurements. For precise, high-volume applications, optical comparators or laser scanners can also be used to ensure accuracy.

Part Setup

Proper setup of the part is crucial for accurate measurement. For radial runout, ensure the part is securely mounted on a spindle or fixture, allowing it to rotate freely along its intended axis. If measuring a shaft, it should be supported at both ends to prevent any unnecessary movement. For axial runout, ensure the part’s axis is aligned with the measurement tool. This alignment is typically achieved by placing the part in a fixture that holds it along its length, preventing misalignment during measurement.

Tool Positioning

Once the part is set up, the measurement tool needs to be positioned correctly. When using a dial indicator, place the stylus so it contacts the surface of the part at the point where maximum variation is expected. For radial runout, the indicator should be perpendicular to the axis of rotation, and for axial runout, it should be positioned parallel to the part’s axis. In the case of circular runout, the indicator is placed to measure variations in radius as the part rotates. For total runout, the tool should be placed along the length of the part, measuring at multiple points to capture all variations.

Rotation and Measurement

After positioning the tool, slowly rotate the part, either manually or using a motorized setup. As the part rotates, the dial indicator or other tool will measure any deviation from the ideal rotational motion. For radial runout, this will be reflected as changes in the distance between the part’s surface and its center of rotation. Axial runout will show how much the part shifts laterally or vertically as it rotates. In the case of total runout, measurements are taken along the entire length of the part to capture any deviations throughout the surface.

Reading the Results

After completing the rotation, it’s time to record and analyze the measurements. For radial runout, the difference between the highest and lowest readings during one full rotation indicates the total variation. For axial runout, deviations in the vertical or lateral direction are measured. When measuring total runout, you must take multiple measurements along the length of the part, with the largest deviation recorded as the total runout value.

Comparison to Tolerances

Finally, compare the measured runout values to the tolerances specified in the engineering drawing or part specification. If the runout exceeds the allowable limits, corrective actions may be necessary. This could involve reworking the part, adjusting the setup, or improving the manufacturing process. By following these steps, you can ensure that the part meets the required standards for precision and performance.

Why Avoiding Runout is Crucial in Manufacturing?

1. Impact on Mechanical Performance

Runout directly affects the performance, reliability, and longevity of mechanical components. In applications like shafts, gears, and bearings, precision is critical for smooth operation. Uncontrolled runout can lead to significant problems, affecting both the quality of the part and the functionality of the system.

2. Mechanical Efficiency

Excessive runout causes uneven rotation, which results in vibrations, noise, and imbalances in rotating parts. These irregularities accelerate wear and tear, leading to premature component failure. In complex systems such as engines, turbines, or pumps, even small deviations in runout can disrupt performance, lower efficiency, and increase energy consumption.

3. Product Quality

Runout can cause parts to fall outside required dimensional tolerances, affecting their fit and interaction with other components. Misalignment can lead to poor sealing, uneven force distribution, or inefficient power transmission. For example, excessive runout in a shaft can misalign it with bearings, causing accelerated wear or system failure.

4. Equipment Lifespan

Runout-induced vibrations and misalignments put additional stress on components, shortening their lifespan. By controlling runout within specified limits, manufacturers can reduce the risk of early failure and minimize repair or replacement costs, resulting in long-term savings.

5. Safety Considerations

In high-speed or high-stress applications, even minor runout variations can cause catastrophic failures. High-speed rotating components must be perfectly balanced and aligned to avoid dangerous situations, such as the failure of a critical part during operation. Minimizing runout is crucial for both machine safety and operator protection.

Avoiding runout is essential for ensuring the efficiency, quality, longevity, and safety of mechanical systems. By controlling and measuring runout during manufacturing, manufacturers can produce components that perform reliably, reduce maintenance costs, and mitigate safety risks.

Runout vs Total Runout vs Concentricity & Cylindricity

用完

As we mentioned before, runout measures the deviation of a part’s surface relative to a reference point or axis during rotation. It primarily checks how much a part’s surface varies as it rotates around its axis.

• Circular Runout: Measures the variation in the radial direction as the part rotates, ensuring the surface is consistently equidistant from the axis of rotation.
• Axial Runout: Measures the variation in alignment along the axis of rotation, checking for any side-to-side shifts in the part during rotation.

Runout is critical for applications requiring rotational accuracy, like rotating shafts, wheels, or gears. Excessive runout can result in vibrations, wear, and mechanical failure if not controlled.

Total Runout

Total runout is a more comprehensive measurement that accounts for both radial and axial variations across the entire length of a rotating part. It provides a complete picture of the part’s geometry during rotation. Total runout is vital for high-precision applications such as shafts, spindles, and precision gears, where both radial and axial accuracy are crucial. Excessive total runout can cause instability, leading to vibrations and wear in connected components.

Concentricity

Concentricity measures the alignment of two or more features within a part, ensuring their centers coincide. It is particularly important for parts where precise alignment between features is required, such as bearings or bushings. Even slight misalignment can result in uneven wear, binding, or improper fit, potentially causing mechanical inefficiency or failure.

Cylindricity

Cylindricity measures the overall form of a cylindrical surface, ensuring it is uniform and free from deviations such as tapering or eccentricity. This is essential for parts like shafts, pistons, and cylinders, where maintaining a perfect cylindrical shape is critical for proper function. Any deviation from cylindricity can cause poor sealing, mechanical failure, or difficulty in assembly, especially in tight-fitting applications.

财产	用完	Total Runout	Concentricity	Cylindricity
Focus	Surface deviation during rotation	Cumulative surface deviation during rotation	Alignment of the centers of features	Uniformity of a cylindrical surface
测量	Radial or axial variation at specific points	Radial and axial variation across the entire part	Alignment of center points of features like holes and shafts	Roundness and straightness of a cylindrical surface
工具	Dial indicators, CMM	Dial indicators, CMM	CMM, specialized concentricity gauges	CMM, specialized measuring instruments
应用	Rotating parts like shafts, wheels	Precision rotating parts like shafts and spindles	Ensuring proper fit and alignment between parts	Ensuring uniform cylindrical parts
Tolerance Impact	Affects rotational accuracy and stability	Affects overall rotational balance and part stability	Affects alignment and fitment	Affects fit and sealing between parts

Common Issues with Shaft Runout and Solutions

Shaft runout is the deviation of a rotating shaft from its ideal centerline, leading to imbalances, vibrations, and premature wear. Below are common problems and potential solutions related to shaft runout.

Vibration and Noise

Excessive shaft runout often results in vibrations and noise, particularly in high-speed equipment like motors and pumps. When the shaft isn’t properly centered, uneven rotation creates dynamic forces, leading to operational instability. To resolve this, balancing the shaft during assembly, using precision machining to minimize runout, and conducting regular maintenance can help prevent vibrations and noise over time.

Premature Bearing Wear

Runout can cause uneven loading on bearings, leading to excessive wear. This occurs because the shaft’s wobble increases friction, heat, and stress on the bearings. To reduce bearing wear, it’s crucial to align the shaft properly during installation, use precision bearings designed to handle misalignment, and avoid overloading the shaft to prevent deformation and excessive friction.

Loss of Efficiency and Power Transmission Issues

Runout in a shaft can decrease efficiency in power transmission systems like gears, pulleys, or belts. This misalignment can cause slippage and uneven power distribution, ultimately lowering system performance. Addressing this requires ensuring precise shaft design, using flexible couplings to buffer minor runout, and carefully aligning components during assembly to maintain efficiency.

Seal and Gasket Leakage

Shaft runout can lead to misalignment between the shaft and seals or gaskets, causing leaks. In critical systems like pumps and compressors, this can result in fluid loss, contamination, or even failure. To prevent leakage, it’s essential to ensure proper shaft alignment with seals, use flexible seals where minor misalignments may occur, and regularly inspect and replace worn seals to maintain a proper seal over time.

Material Fatigue and Cracking

Excessive runout can induce cyclic loading, leading to material fatigue and micro-cracking in the shaft. This is especially concerning in high-stress applications, such as turbines. To minimize fatigue, selecting high-quality, fatigue-resistant materials is key. Additionally, the shaft design should reduce deflection under load, and regular non-destructive testing can help detect early signs of cracking or material failure.

Inaccurate Fitment with Mating Components

Runout can cause inaccurate fitment with mating components like gears, pulleys, or hubs, leading to inefficiencies, noise, or even failure of the components. Precision manufacturing techniques are necessary to minimize runout during production. Additionally, verifying alignment during assembly with tools like dial indicators or CMMs and using the correct tolerances ensures a proper fit, reducing the impact of runout on the entire system.

结论

In summary, understanding and controlling runout is crucial for achieving accuracy and reliability in manufacturing processes. By applying proper measurement techniques and GD&T principles, engineers can minimize runout-related defects and ensure that mechanical parts meet their intended performance standards. Staying aware of common runout issues and their solutions helps prevent costly errors and enhances the overall quality of finished products.

此外， 瑞盛精密科技有限公司 specializes in 数控加工服务, focusing on precise measurement and correction of runout in components. Using advanced tools like CMM and dial indicators, we ensure accurate circular and total runout control, enhancing part performance, reducing vibration, and extending component life.
