Guide to Tolerance Stacking

Tolerance stacking is a crucial concept in the world of engineering and manufacturing. It refers to the cumulative effect of individual component tolerances within an assembly, which can lead to variations in the final product’s dimensions and functionality. By mastering tolerance stacking, engineers and manufacturers can optimize production processes, reduce errors, and deliver high-quality products that fit together seamlessly.

As such, this guide provides a comprehensive overview of tolerance stacking, including its different types, analysis methods, best practices, tools, and real-world applications. Whether you’re a designer, engineer, or manufacturer, mastering tolerance stacking will help you deliver high-quality, reliable products.

What is Tolerance Stacking?

公差 in engineering refers to the permissible limit of variation in a physical dimension or measurement. One of the most widely used systems for defining these variations is 几何尺寸和公差 (GD&T). On the other hand, tolerance stacking involves the accumulation or combination of individual tolerances in a mechanical or manufacturing system, particularly when multiple parts or components are assembled together.  It describes how small variations or deviations in the dimensions of individual parts can add up. As a result, this can potentially lead to a larger deviation in the final assembly than what might be acceptable or anticipated.

When parts are made with specific tolerance, like ±0.01 mm, each individual part may be produced with small variations in size or shape, but still within the acceptable tolerance limits. However, when these parts are assembled, the cumulative effect of these variations can cause misalignment, gaps, or other issues that affect the overall performance or functionality of the final product.

Types of Tolerance秒

There are several types of tolerances that can be applied depending on the application, precision requirements, and industry standards. Below are the main types of tolerances:

1. Limit Tolerance

Limit tolerance specifies the maximum and minimum permissible sizes for a feature. It defines a range within which the dimension must fall. For example, a hole with a nominal size of 50 mm and a tolerance of ±0.2 mm would be acceptable between 49.8 mm and 50.2 mm.

2. General Tolerance

General tolerance applies to all dimensions of a drawing unless otherwise specified. It provides a standard set of allowable variations for dimensions not explicitly toleranced, simplifying design and manufacturing. For instance, a general tolerance might be ±0.5 mm for linear dimensions.

3. Fits and Clearances

Fits define the relationship between two mating parts, usually a hole and a shaft. Types of fits include clearance fit (always a gap), interference fit (slight interference), and transition fit (either a gap or small interference). The choice of fit depends on the required functional relationship.

4. Plus and Minus Tolerance

Plus and minus tolerance allows a dimension to vary above (plus) or below (minus) the nominal value, specifying acceptable deviation limits. For instance, a part with a nominal dimension of 100 mm and a tolerance of +0.1 mm and -0.2 mm can range between 99.8 mm and 100.1 mm.

5. Symmetrical Tolerance

Symmetrical tolerance specifies that the variation should be evenly distributed above and below the nominal dimension, ensuring balanced deviation. For example, a dimension of 100 mm ± 0.1 mm would allow the part to range from 99.9 mm to 100.1 mm symmetrically.

6. Geometric Tolerances (GD&T)

GD&T is a symbolic system for controlling part geometry, including form, orientation, location, and runout. It uses symbols to specify allowable deviations in shape, alignment, position, and contour. This system offers precise control for complex parts and high-precision applications.

7. Angular Tolerance

Angular tolerance controls the permissible deviation in angles between two features, such as the angle between surfaces or the axis of a hole. It is essential for parts requiring precise angular alignment.

8. Surface Finish Tolerance

Surface finish tolerance specifies the allowable roughness or smoothness of a part’s surface, often represented by the Ra value (average roughness). It is critical for parts with specific sealing, friction, or aesthetic requirements.

9. Radial and Axial Tolerances

Radial tolerance controls variations in the radius of cylindrical parts, while axial tolerance controls the length or axial dimensions. These are particularly important for parts like shafts or bearings where precise fit and function are critical.

10. Profile Tolerance

Profile tolerance controls the shape or contour of a feature, applied to either 2D or 3D surfaces. It is often used for parts with complex curves or irregular shapes, ensuring the feature stays within the allowable deviation from a reference profile.

11. Compound Tolerance

Compound tolerance involves the combination of multiple types of tolerances applied to a part. This approach is used for complex parts where different features must meet multiple tolerance requirements simultaneously, ensuring the part functions as intended.

12. Independent Tolerance

Independent tolerance applies to dimensions that are independent of one another. Changes in one dimension do not affect others, making it useful for parts with unrelated features that require independent control.

Methods of Tolerance Stack Analysis

By analyzing how these tolerances accumulate, engineers can ensure that the final product fits together as intended without exceeding permissible limits. Below are several methods used in tolerance stack analysis.

1. Worst-Case (WC) Method

The worst-case method assumes that all tolerances vary to their maximum limits in the same direction. The total variation of the assembly is calculated by simply summing the individual tolerances, assuming they all contribute to the worst-case scenario.

Formula:

• 优势: Simple and ensures reliability.
• 坏处: Overestimates variation, leading to overly tight tolerances.

2. Root-Sum-Square (RSS) Method

The RSS method assumes that the tolerances are independent and calculates the total variation by taking the square root of the sum of the squares of each individual tolerance.

Formula:​

• 优势: More realistic than the worst-case method and less conservative.
• 坏处: Assumes tolerances are independent, which may not always hold true.

3. Monte Carlo Simulation

In Monte Carlo simulation, random values within the tolerance ranges of each component are repeatedly sampled to generate a statistical distribution of possible outcomes for the assembly dimension. This method doesn’t rely on a simple formula but instead simulates the process multiple times to build a probability distribution.

• 优势: Provides detailed probabilistic insights.
• 坏处: Computationally intensive and requires specialized software.

4. Statistical Tolerance Analysis

Statistical tolerance analysis uses statistical models, such as regression or probabilistic models, to evaluate how variations propagate through the assembly. This approach considers the statistical distribution of each tolerance.

This method involves more complex mathematical models but does not have a single simple formula. For example, if you’re dealing with normal distributions, you might calculate the total variation by propagating the individual distributions using convolution or other statistical tools.

• 优势: Provides a deeper understanding of complex systems with interrelated dimensions.
• 坏处: Requires advanced statistical knowledge and tools.

5. Dimension Chain Method

The dimension chain method works by adding or subtracting the tolerances along a linear chain of components in the assembly. The total tolerance variation is calculated by simply adding the individual tolerance contributions.

Formula:

This is similar to the worst-case method but typically used for linear, sequential dimensions.

• 优势: Simple and intuitive for linear assemblies.
• 坏处: Becomes complex when dimensions are not linear or when interdependent.

6. Sensitivity Analysis

Sensitivity analysis involves varying each tolerance individually to determine its impact on the final assembly dimension. Furthermore, it doesn’t directly calculate the total variation, but instead helps identify which tolerances have the largest influence on the assembly.

• 优势: Identifies critical dimensions that need tighter control.
• 坏处: Does not account for simultaneous variations unless combined with other methods.

Example of Tolerance Stacking

Let’s consider an assembly with three parts: Part A (Shaft), Part B (Bearing 1), and Part C (Bearing 2). These parts need to fit together, and we want to analyze how their dimensional variations (tolerances) accumulate when assembled.

例子: Shaft and Bearings Assembly

• Part A (Shaft): 20 mm ± 0.1 mm
• Part B (Bearing 1): 20 mm ± 0.05 mm
• Part C (Bearing 2): 20 mm ± 0.05 mm

Step 1: Determine Maximum and Minimum Sizes

• Shaft (Part A): Max size = 20.1 mm, Min size = 19.9 mm
• Bearings (Parts B and C): Max diameter = 20.05 mm, Min diameter = 19.95 mm

Step 2: Worst-Case Analysis

• Maximum interference (Shaft at max size and Bearings at min size):
  • 20.1 mm – 19.95 mm = 0.15 mm interference
• Minimum interference (Shaft at min size and Bearings at max size):
  • 19.9 mm – 20.05 mm = -0.15 mm (no fit)

Step 3: RSS Method (Root-Sum-Square)

For a more realistic estimate, use the RSS method:

Thus, the total variation is ±0.1225 mm.

Step 4: Interpretation

• Worst-case method: The shaft may fit with 0.15 mm interference or fail to fit.
• RSS method: The shaft will likely fit within a variation of ±0.1225 mm.

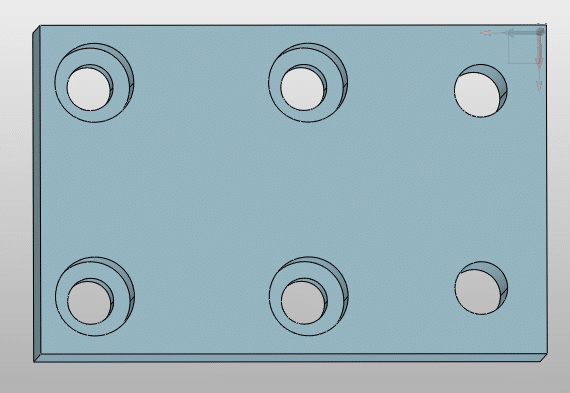

Diagram of Tolerance Stacking

This simple example shows how tolerance stacking can impact part fit and function and how different methods can be used to assess the variation.

Tolerance Stacking Best Practices

Proper analysis ensures the final product meets specifications without excessive cost or complexity. Below are key best practices for tolerance stack-up:

1. Define Critical Dimensions Early

To begin with, it’s essential to understand the functional requirements of the assembly. Identifying which dimensions are critical for fit, function, and performance early in the design process allows you to focus tighter tolerances on these key features. Meanwhile, less critical dimensions can have more relaxed tolerances, helping prioritize resources and manufacturing efforts effectively. This initial step ensures that the most important aspects of the design are given the attention they need.

2. Use Statistical Methods for Accuracy

In addition, rather than relying solely on conservative worst-case tolerance analysis, it is beneficial to employ statistical methods such as Root-Sum-Square or Monte Carlo simulations. These techniques assume that variations are random and independent, offering a more realistic prediction of the overall dimensional variation in the final assembly. By using these methods, you can get a clearer picture of the true variation, avoiding overly conservative assumptions that might lead to unnecessary adjustments.

3. Consider Tolerance Accumulation

Moreover, understanding how tolerances accumulate is crucial in predicting the overall variation. Depending on how parts are arranged in the assembly, the total variation may either increase linearly or behave differently. For example, in series assemblies, the variation might add up, while in more complex or parallel arrangements, the effects could cancel each other out. Recognizing these patterns will help you accurately estimate the combined variation and avoid overestimating or underestimating the final result.

4. Prioritize Tolerances Based on Impact

Furthermore, it’s important to acknowledge that not all tolerances have the same effect on the final product. Performing a sensitivity analysis allows you to identify which dimensions are most sensitive to variation and have the greatest impact on assembly fit and performance. By tightening tolerances only where necessary, you can focus your efforts and resources on the areas that truly affect product quality, ensuring efficient use of time and cost.

5. Align with Manufacturing Capabilities

Finally, ensuring that your tolerance specifications align with the capabilities of the manufacturing process is key. Manufacturing processes often have inherent precision limits, and setting tolerances that are too tight for a given process can result in higher costs, longer production times, and lower yields. By matching tolerance requirements to the practical limitations of your production methods, you can ensure that the design is both achievable and cost-effective, ultimately improving manufacturability.

Tools for tolerance stacking

There are several tools available for performing tolerance stacking analysis, ranging from simple manual methods to advanced software solutions.

1. Spreadsheet Software (Excel)

Excel is a widely used and accessible tool for basic tolerance stack analysis. Engineers can create custom formulas to calculate cumulative tolerance effects, using methods like Worst-Case or Root-Sum-Square. While it’s ideal for small assemblies and simpler analyses, it may struggle with complex interactions in larger systems, leading to less suitable for intricate designs.

2. Monte Carlo Simulation Tools

Monte Carlo simulations provide a probabilistic approach to tolerance analysis. These tools run multiple simulations with randomly varied tolerances, offering insights into potential outcomes. They’re effective for large and complex assemblies, though they require specialized software and are computationally intensive, making them time-consuming for large-scale simulations.

3. 3D CAD Software with Tolerance Analysis Modules

Many 3D CAD tools, like Siemens NX and Autodesk Inventor, come with built-in tolerance analysis modules. These tools allow engineers to analyze both dimensional and geometric tolerances directly within the CAD environment. The integration with 3D models enables real-time visualization and analysis, though the software can be expensive and requires familiarity with CAD systems and tolerance analysis features.

4. Specialized Tolerance Analysis Software

Dedicated software like 3DCS Variation Analyst or TolAnalyst offers advanced capabilities for handling both linear and non-linear tolerance stack-ups. These tools are designed to perform detailed statistical analysis and optimization, making them ideal for complex assemblies. However, they come with high costs and require specialized training to leverage their capabilities fully.

Applications of Tolerance Stacking

Tolerance stacking plays a crucial role in various industries, especially in product design and manufacturing. Below are some of the primary applications of tolerance stacking across different fields:

1. Automotive Industry

In automotive manufacturing, tolerance stacking ensures proper fit and alignment of components like engine parts and body panels, preventing misalignment or performance issues.

2. Aerospace and Aviation

For aerospace, precision is critical. Tolerance stacking helps ensure that components like fuselages and turbines fit correctly, avoiding safety risks and performance failures.

3. Consumer Electronics

In electronics, tolerance stack-up ensures that components like screens and batteries align properly, ensuring product reliability and preventing functionality issues.

4. Medical Devices

In the medical field, tolerance stacking ensures components like implants and diagnostic tools fit precisely, ensuring safety and performance.

5. Industrial Machinery

In industrial equipment, tolerance stacking ensures parts like gears, bearings, and motors fit together precisely, avoiding misalignment and ensuring smooth operation.

6. Furniture and Home Appliances

Tolerance stack-up ensures that furniture parts and appliance components fit correctly, making assembly easier and enhancing durability.

7. Tooling and Dies

In tooling and die manufacturing, tolerance stacking is used to predict and control dimensional variations in molds, ensuring high-quality production with minimal errors.

8. High-Precision Optics

In optics, tolerance stacking ensures that lenses, mirrors, and other components fit perfectly to maintain accuracy in devices like cameras and telescopes.

结论

In summary, tolerance stacking plays a critical role in ensuring the quality and performance of assembled products. By understanding the types of tolerances, employing effective analysis methods, and adhering to best practices, engineers can minimize the risks associated with dimensional variations. Utilizing the right tools and addressing the challenges inherent in tolerance stacking can lead to more efficient production processes and better product outcomes. As industries continue to demand higher precision, a solid grasp of tolerance stacking is more important than ever.
