Grooving Tools: Techniques and Applications

Grooving is a critical machining process used to create narrow, precise cuts or grooves in a workpiece. It is extensively applied in manufacturing, especially in industries requiring high-precision components, such as automotive, aerospace, and medical devices. As such, this blog will explore various aspects of grooving tools, including the different types, techniques, and applications, while offering practical advice for improving grooving operations and solving common issues. Whether you are working with a מחרטת CNC or looking to enhance the quality of your grooving, this guide will provide valuable insights.

What is Grooving?

Grooving refers to a machining process used to cut a groove, channel, or indentation into a part. The primary goal of grooving is to create a specific-shaped recess, which can serve various functions, from allowing for the fitting of parts and improving fluid flow to providing aesthetic effects. The process is usually performed using specialized cutting tools, often on a lathe or CNC machine, to ensure precise and clean grooves. Furthermore, grooves can vary in size, shape, and depth depending on the specific requirements of the task.

How to Groove on a CNC Lathe?

Grooving on a CNC lathe involves creating precise grooves or slots in a workpiece using specialized cutting tools. Here is a step-by-step guide on how to perform grooving effectively:

1. Prepare the CNC Lathe

First, ensure that the CNC lathe is correctly set up. This includes checking the machine settings to make sure that the appropriate tooling is in place and the workpiece is securely mounted. Additionally, load the CNC program that is designed specifically for the grooving operation, ensuring that all parameters match the desired groove dimensions.

2. Select the Right Tool

Next, select the appropriate grooving tool. The tool must match the required width, depth, and shape of the groove. Depending on the application, this can involve choosing from external, internal, face grooving, or parting tools. After selecting the tool, it should be correctly mounted in the turret or tool holder, ensuring that it is securely fastened and properly aligned with the workpiece.

3. Set the Tool Offsets

Prior to initiating the cutting process, it is crucial to set the tool offsets. Use the CNC lathe’s control panel to accurately set the tool offsets, ensuring that the tool starts at the correct position relative to the workpiece. Additionally, input the tool’s dimensions and cutting-edge geometry into the CNC system to ensure precise machining.

4. Program the Grooving Operation

Now, define the groove parameters, including the width, depth, and feed rate. It may be necessary to program multiple passes, especially for deeper grooves, to prevent excessive tool wear or breakage. Furthermore, adjust the spindle speed and feed rate based on the material being machined and the specifications of the tool. Optimal settings will help reduce tool wear and improve the surface finish.

5. Perform the Grooving Operation

Once all preparations are complete, start the CNC cycle to begin the actual machining process. It is important to monitor the operation closely to ensure that the tool cuts smoothly and that the groove is formed correctly. Additionally, use appropriate cutting fluid or coolant to reduce heat, improve chip removal, and extend the life of the tool.

6. Inspect the Groove

After machining the groove, check its dimensions, including width, depth, and surface finish, to ensure they meet the required specifications. If the groove does not meet tolerances, make fine adjustments to the tool offsets or program and repeat the operation to ensure accuracy.

7. Complete the Machining

Once the groove has been completed and verified, remove the workpiece from the lathe. Finally, clean the lathe and remove any chips or debris to prepare for the next operation. This series of steps ensures the efficiency and precision of the grooving operation.

By following these steps, grooving on a CNC lathe can be performed efficiently, resulting in accurate and high-quality grooves that meet precise specifications.

Types of Grooving Tools

They come in various types, each tailored to specific applications and machining needs. Here’s a more detailed look at the main types:

External Grooving Tools:

Use external grooving tools to cut grooves on the outer surface of a workpiece. These tools find common applications in creating O-ring grooves, retaining rings, and decorative grooves. A sturdy design allows them to handle the forces generated during the cutting process, ensuring accuracy in the groove dimensions.

Internal Grooving Tools:

Design internal grooving tools to cut grooves inside a bore or hole. Their long and narrow shape enables access deep into the workpiece without compromising rigidity. These tools are essential for creating internal features like snap ring grooves or preparing internal threading. Small cutting edges fit into confined spaces while maintaining precision.

Face Grooving Tools:

Use face grooving tools to cut grooves on the face of a workpiece, such as the end of a cylindrical part. These tools are critical for applications requiring circular slots or flat grooves, such as flanges or valve components. Equipped with specialized inserts, they handle the unique demands of face cutting, delivering clean and accurate grooves.

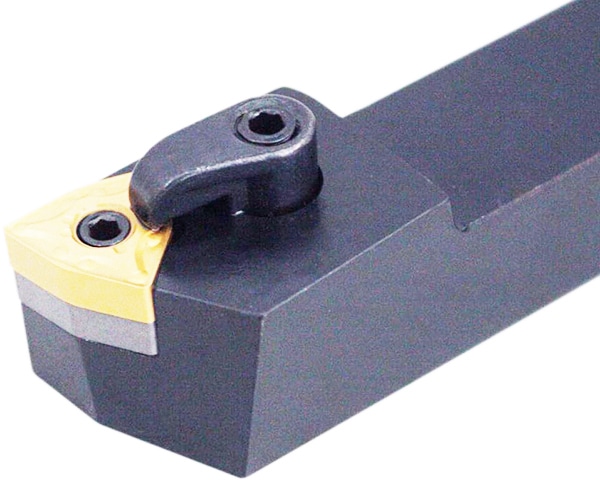

Threading Grooving Tools:

Specialize threading grooving tools in creating threaded grooves, both externally and internally. They come in various thread profiles to produce screws, bolts, nuts, and other threaded components. Control of these tools must be precise to achieve the correct thread pitch and depth.

Full Radius Grooving Tools:

Utilize full radius grooving tools to cut grooves with a full radius profile. These tools are common in applications needing rounded grooves, such as sealing rings or smooth transitions. Moreover, full radius designs reduce stress concentrations and improve the fatigue life of components.

Customized or Special Grooving Tools:

Create customized grooving tools when standard options do not meet unique machining task requirements. These tools feature specific groove profiles, dimensions, and material properties tailored to particular industrial needs. Use these tools for specialized tasks involving complex geometric shapes, unique material types, or high-precision applications.

Multi-Insert Grooving Tools:

Incorporate multiple cutting inserts in multi-insert grooving tools, allowing simultaneous cutting of several grooves or complex profiles in a single pass. These tools enhance efficiency by reducing machining time and ensuring uniformity in parts with multiple grooves.

Factors to Consider When Selecting a Grooving Tool

When selecting a grooving tool, several key factors must be considered to ensure the tool meets the specific requirements of the operation. Below are the most important considerations.

1. Type of Grooving Operation

The first consideration is the type of grooving operation being performed—whether it’s external, internal, or face grooving. Each operation demands specific tool geometries. For example, internal grooving tools need a longer reach to access the bore, while face grooving tools require stability for cutting on the face of the workpiece.

2. Material of the Workpiece

The workpiece material significantly affects tool choice. Different materials have varying hardness and toughness, which influence the type of cutting tool required. For instance, harder materials like stainless steel may need carbide tools with wear-resistant coatings, whereas softer materials like aluminum can be machined with high-speed steel tools. Understanding the material properties helps in selecting a tool that offers the best performance and longevity.

3. Groove Dimensions

The required groove width, depth, and shape are critical in choosing the right tool. It must select tools that match these dimensions accurately, especially for narrow or deep grooves requiring specialized tools to maintain precision without deflection. In addition, tools with specific profiles, like full-radius or chamfered edges, are essential for achieving the desired groove shape.

4. Tool Material and Coating

The material and coating of the tool play a crucial role in its performance and durability. Carbide tools are preferred for their hardness and heat resistance, particularly in high-speed operations. Coatings like TiN or TiAlN can further enhance tool life by reducing friction and wear, especially when machining abrasive materials. Choosing the right combination ensures optimal tool performance.

5. Machine Capabilities

The capabilities of the CNC lathe, including spindle speed, feed rate, and rigidity, must align with the tool’s specifications. A mismatch can lead to poor performance, excessive wear, or tool failure. Tools should be compatible with the machine’s power and stability to minimize vibrations and achieve precise results.

How to Improve Grooving Machining?

Improving grooving machining involves optimizing various aspects of the process to achieve higher precision, better surface finish, and increased efficiency. Here are several strategies to enhance grooving operations:

1. Select the Right Tool

Using the correct grooving tool is essential for improving machining quality. Choose tools that match the specific groove dimensions, material, and operation type. High-quality tools with appropriate geometries and coatings can reduce wear, enhance cutting performance, and extend tool life.

2. Optimize Cutting Parameters

Properly setting cutting parameters such as spindle speed, feed rate, and depth of cut can significantly impact the quality of the groove. Adjust these parameters according to the material and tool being used. Using lower feed rates and optimal speeds can improve surface finish and reduce tool wear.

3. Use Effective Chip Control

Efficient chip removal is crucial to prevent clogging and ensure a smooth cutting process. Tools with built-in chip breakers or specific geometries designed for chip control can help maintain a clear-cutting area, reduce heat buildup, and prevent tool damage.

4. Ensure Proper Tool Alignment

Accurate tool alignment is vital for achieving precise grooves. Misalignment can lead to uneven grooves, increased tool wear, and poor surface quality. Regularly check and adjust the tool setup to maintain alignment, especially when changing tools or workpieces.

5. Utilize Coolant or Lubrication

Using appropriate coolant or lubrication helps to reduce heat generated during machining, which can improve tool life and surface finish. Coolant also aids in chip removal and prevents workpiece deformation due to excessive heat.

6. Minimize Vibration

Reducing vibration during machining is critical for maintaining precision. Ensure that the machine setup is rigid and stable, with secure clamping of both the tool and the workpiece. Using dampening techniques or vibration-resistant tool holders can further enhance stability.

Material Choices for Grooving Machining

Selecting the appropriate material for grooving tools is essential to ensure efficient and precise machining. Each material type offers unique characteristics that suit different machining conditions and workpiece materials. Below are detailed explanations of the most commonly used tool materials:

1. High-Speed Steel (HSS)

High-speed steel is widely used for grooving tools due to its toughness and resistance to impact. It is relatively inexpensive and easy to sharpen, making it a cost-effective choice for many applications. Furthermore, HSS is best suited for machining softer materials such as aluminum, brass, and mild steel. It performs well in low to medium-speed operations and can be re-sharpened multiple times to extend its lifespan. However, it is less wear-resistant than harder materials like carbide, which limits its use in high-speed or heavy-duty applications.

2. Carbide

Carbide tools are known for their exceptional hardness and wear resistance. They can maintain sharp cutting edges even at high speeds, making them ideal for machining harder materials like stainless steel, cast iron, and exotic alloys. Carbide is suitable for high-speed, high-precision operations and provides a superior surface finish. Despite its many advantages, carbide is more brittle than HSS and can chip or break under high-impact conditions or improper use.

3. Cermet

Cermet tools, made from a combination of ceramic and metallic materials, offer high wear resistance and excellent surface finish capabilities. They are particularly effective in finishing operations where smooth surface finishes are required, especially when machining steels and cast irons. While cermet tools provide good thermal stability and wear resistance, they are not as tough as carbide tools, which can make them less suitable for roughing operations.

4. Ceramic

Ceramic tools are extremely hard and wear-resistant, making them suitable for high-speed machining, particularly of hard and abrasive materials like hardened steels and superalloys. They perform well in dry machining environments where high heat is generated, thanks to their excellent thermal stability. However, ceramic tools are brittle and prone to chipping or breaking under sudden impacts or heavy loads, limiting their use in interrupted cuts or high-impact scenarios.

5. Polycrystalline Diamond (PCD)

Polycrystalline Diamond tools are made from synthetic diamond particles bonded to a carbide substrate, offering unmatched hardness and wear resistance. PCD is ideal for machining non-ferrous materials, composites, and highly abrasive materials like aluminum alloys and ceramics. These tools provide extremely long tool life and excellent surface finishes. However, PCD is not suitable for machining ferrous materials due to chemical reactions at high temperatures, and the high initial cost can be a consideration.

Applications of Grooving Tools

1. Automotive Industry

In the automotive sector, grooving tools are used for machining critical components such as הילוכים, פירים, and transmission parts. These grooves allow for the proper placement of seals, מיסבים, and snap rings, which are essential for the smooth operation of engines and transmission systems. Grooving tools ensure high precision and durability, enabling reliable performance in automotive assemblies.

2. Aerospace Industry

Grooving tools are crucial in the aerospace industry for producing parts that require tight tolerances and high strength. They are used to machine grooves in engine components, brackets, and structural elements, ensuring secure fits and optimal performance. These grooves may be for seals, bolts, or to improve aerodynamics in specific parts, playing a critical role in maintaining the integrity and safety of aerospace systems.

3. Oil and Gas Industry

In the oil and gas industry, grooving tools are used to create grooves on pipe fittings, valve seats, and flanges. These grooves allow for the proper sealing between mating parts, which is vital for leak prevention and maintaining pressure in pipelines and valves. Grooving tools provide the precision required to ensure these components function effectively under harsh operating conditions, such as high pressure and temperature.

4. Medical Device Manufacturing

The medical device industry relies on grooving tools to create precise grooves in components such as surgical instruments, implants, and medical housings. These grooves can be used for functional purposes, such as securing parts together or holding seals, or for aesthetic purposes in the design of prosthetics. The high precision required in medical device manufacturing ensures that grooving tools are used for both safety and performance in critical applications.

5. Electronics Industry

Grooving tools are also widely used in the electronics industry for machining components like casings, housings, and connectors. These grooves are often created with high tolerance to ensure the precise fitting of electronic parts and help in the efficient functioning of electronic devices. Whether for improving heat dissipation or enhancing the structural integrity of products, grooving tools are integral to the production of high-quality electronic components.

In these industries, grooving tools are essential for producing components with the required functionality, precision, and durability. Their ability to create accurate grooves is crucial to the success of a wide range of products and systems.

סיכום

In conclusion, mastering the art of grooving machining not only improves productivity but also contributes to the creation of components that are safe, reliable, and high-performing across multiple sectors. By addressing common issues and embracing best practices, manufacturers can ensure that their grooving operations remain efficient, accurate, and cost-effective.

בנוסף, Runsom דיוק is dedicated to providing high-quality custom שירותי עיבוד שבבי CNC, including specialized grooving operations that cater to industries such as automotive, aerospace, medical, and electronics. By utilizing advanced manufacturing techniques and optimizing cutting parameters, we ensure that its grooving tools effectively address common machining challenges like tool wear and vibration. This commitment to precision enables enhanced production efficiency and accuracy. Whether for rapid prototyping or low to medium-volume production, Runsom meets stringent quality demands, helping businesses achieve reliable, high-performance components.
