Guide to Sand Casting: Process, Materials, and Comparisons

Sand casting is a metal proceso de fundición employed to create parts for a wide range of applications. This method is valued for its ability to produce complex shapes and intricate details at a relatively low cost. As such, this guide explores the sand casting process in detail, covering materials, techniques, pros and cons, and more.

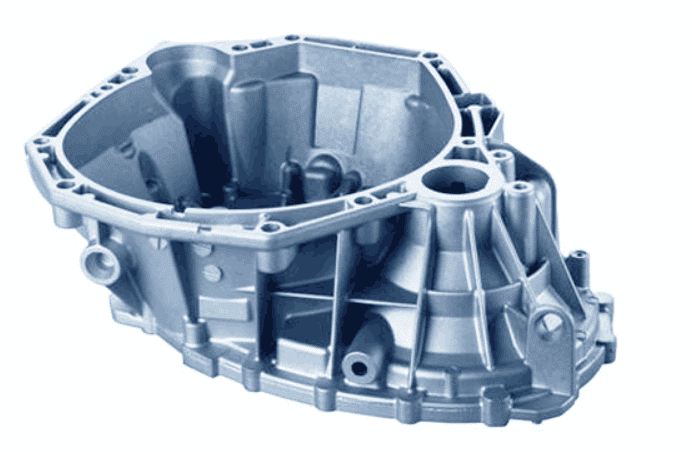

What is Sand Casting?

Sand casting uses sand as the molding material to create a cavity for pouring molten metal, which then solidifies into the desired shape. Additionally, it is known as sand-molded casting. Almost all casting metals can be applied in sand casting, thus it is the most widely used metal casting process in manufacturing.

How Does Sand Casting Work?

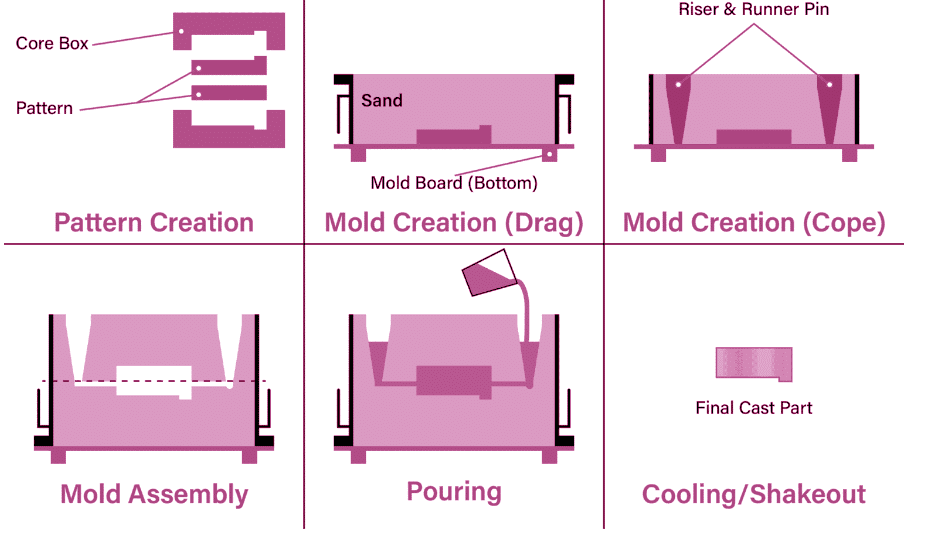

With this fundamental understanding in place, we can explore how sand casting is executed in practice. Here’s a step-by-step breakdown of how sand casting works:

1. Sand Preparation: This involves preparing molding sand and core sand, typically by mixing used sand with the right amount of clay using a sand mixer. Sand for molds consists of a sand coat and base sand. Bentonite clay is mixed with sand to create durability for the mold.
2. Haciendo patrones: Next, manufacturers create molds and core boxes based on part drawings. They might use wooden molds for single parts while opting for plastic or metal molds for mass production, and pattern plates for large castings. To streamline the process, they often utilize engraving machines to help shorten the production cycle.
3. Molding: This step includes three main activities: sand molding, core making, and mold fitting. Sand molding forms the cavity for the casting from the molding sand. The sand is packed around a pattern, which is a replica of the external shape of the casting. When the pattern is removed, the cavity that will form the casting remains. The top and bottom halves of the mold are known as the “cope” and “drag”. Furthermore, core making involves producing cores that establish the internal shape of the casting. In mold fitting, workers assemble the upper and lower sandboxes after placing the cores inside the cavity.
4. Melting: For the melting process, the chemical composition of the metal must match the required specifications. operators use a suitable furnace, such as an electric furnace, to melt the alloy material and create qualified liquid metal.
5. Molten Metal Pouring: When it comes to pouring, technicians transfer the molten metal from the electric furnace into the mold using a ladle. They must maintain an appropriate pouring speed to ensure that the molten metal fills the entire cavity effectively.
6. Sand Removal: After the molten metal solidifies, personnel take a hammer to remove the sprue and shake off any excess sand from the castings. They then clean the castings with a sandblaster to achieve a smooth, finished surface.
7. Molienda: Finally, for castings with special requirements, grinding becomes necessary if the surface of the casting blanks does not meet expectations. Technicians typically use a grinding wheel or grinder to remove burrs and enhance the finish of the casting.

Types of Sand Casting

There are several variations of sand casting, each with its own nuances in materials and techniques. Here’s an overview of some common types:

1. Green Sand Casting:

This is the most traditional and widely used technique. The “green” refers to the moisture content in the sand mixture, which consists of sand, clay, and water. This moisture helps the sand bind together. Green sand casting is known for its simplicity, cost-effectiveness, and suitability for a wide range of part sizes and complexities. The sand can also be reused, making it environmentally friendly. However, it generally results in a poorer surface finish and less precision compared to other methods.

2. Sodium Silicate (Water Glass) Casting:

This method uses sodium silicate as a binder to integrate the sand for mold formation. The mold is formed similarly to traditional methods but is then dried and cured to create a more precise structure. Sodium silicate casting is suitable for intricate and delicate patterns and offers good dimensional stability, lower costs, and shorter curing times compared to green sand. However, these molds may be less resilient during handling. To allow the breakdown after casting so the core can be removed, it must be mixed with other materials.

3. Resin Sand Casting:

This technique mixes sand with a resin binder, which, when heated, creates a solid mold with a smooth surface. Resin sand casting is often used for large, heavy pieces and intricate designs, offering higher precision than green sand. However, it is more expensive and has a slower production rate due to the time required to mix and cure the molds. Though the resin can be reused, it constantly needs to be replenished, making the process more costly.

4. Shell Molding:

A relatively recent invention for mass production and smooth finishes, shell molding involves mixing dry, fine silica sand with a thermosetting resin. The mixture is dropped onto a heated pattern plate, forming a hard shell.

Key Materials Used in Sand Casting

In sand casting, the materials used play a crucial role in determining the quality and characteristics of the final product. Here’s an overview of the key components involved in sand casting:

• Arena: The most commonly used sand is silica, known for its heat resistance and ability to be recycled. Ideal sand should have a high quartz content, with round grain shapes and smooth surfaces. Various types of sand can be utilized, including green sand, dry sand, resin sand, and sodium silicate sand.
• Binders: Binders are essential as they enhance the cohesion of the sand mixture. One common binder is clay, particularly bentonite clay, which improves the mold’s durability. Both Western Bentonite and Southern Bentonite are frequently used. Another effective binder is sodium silicate, known for providing good dimensional stability, low cost, and shorter curing times. Resins, such as furan resin, also serve as binders, creating solid molds with smooth surfaces.
• Aditivos: To improve the properties of the sand, clay, and water mixture, various additives can be included. These may include iron oxides, starch, wood flour, and dextrin. Iron oxides can be particularly beneficial as they help to mitigate gas emissions during the casting process.
• Water: In green sand casting, water is crucial as it binds the sand mixture together, ensuring the mold holds its shape during casting.
• Rieles: A wide range of metal alloys can be sand cast, making this method versatile. Common examples of metals used include aluminum alloys, bronze, steel, and iron.

Advantages and Disadvantages of Sand Casting

Sand casting presents a variety of strengths and weaknesses. Here’s a summary of the advantages and disadvantages of this casting method:

ventajas:

• Cost-Effective: Sand casting is characterized by low tooling costs, thus it is perfect for lower volume needs, short runs, and prototype development. The molds and patterns utilized in this process are relatively simple and inexpensive to produce.
• Versátil: This method can be used with nearly any ferrous or non-ferrous alloy, accommodating various materials, including iron, steel, aluminum, and brass.
• Size and Shape Capabilities: Sand casting is capable of producing parts that range greatly in size, from small components to those weighing over 200 tons. The use of cores allows for the casting of internal structures in place, making it suitable for complex shapes.
• Timing: The casting process itself can often be quicker than some other methods, such as investment casting, which can be beneficial for certain production schedules.
• Quantity Flexibility: Sand casting is adaptable for different production quantities, making it appropriate for both single-piece runs and high-volume applications.

Desventajas:

• Acabado de la superficie: Sand castings typically have a rougher surface finish compared to other casting processes. The texture of the sand mold transfers onto the final product, often necessitating additional machining or finishing processes to achieve the desired surface quality.
• Precisión dimensional: Additionally, it generally offers less precision than other casting methods. Dimensional accuracy can vary due to the natural tendency of metals to shrink as they cool.
• Potential for Defects: There is a risk of defects such as shrinkage, porosity, and other metal or surface imperfections. The porosity of the mold can also lead to lower strength in the cast parts.
• Labor Intensive: The process can be labor-intensive, requiring skilled workers. Its manual nature can lead to variability in casting quality, heavily influenced by the operator’s skill and experience.
• Mold Limitations: Each sand casting requires a new mold, as molds cannot retain their shape after the molten metal cools. This limitation can increase production times and costs when making multiple parts.

Applications of Sand Casting

Sand casting sees widespread application across various industries. Here are some typical examples:

• Industria automotriz: Sand casting is frequently applied to manufacture complex automotive components such as engine blocks and transmission housings. Aluminum casting finds uses in the production of high-strength, lightweight engine components.
• Industria aeroespacial: In aerospace, sand casting manufactures aircraft engine parts and structural components that require strength and precision, such as turbine blades, housings, brackets, and fittings.
• Industria de construccion: Common sand-cast products in construction include pipe fittings, manhole covers, and more. Sand casting ensures the production of durable and robust products, securing longevity in construction applications.
• Plomería: Sand casting is suitable for manufacturing plumbing application parts, which include valve bodies, pipe connectors, and fittings.
• Productos metálicos: Sand casting is widely applicable in metal product manufacturing around the world, including swords, pots, and tripods.
• Energy Industry: It can manufacture components and products capable of withstanding high pressure and harsh chemical and environmental conditions for the energy industry, such as wind turbine components.
• Dispositivos médicos: Sand casting is also used in the manufacture of medical device enclosures, diagnostic equipment components, and medical furniture.

Sand Casting vs Die Casting: Which is Better?

The “better” choice between sand casting and fundición a presión depends on the specific application and project requirements.

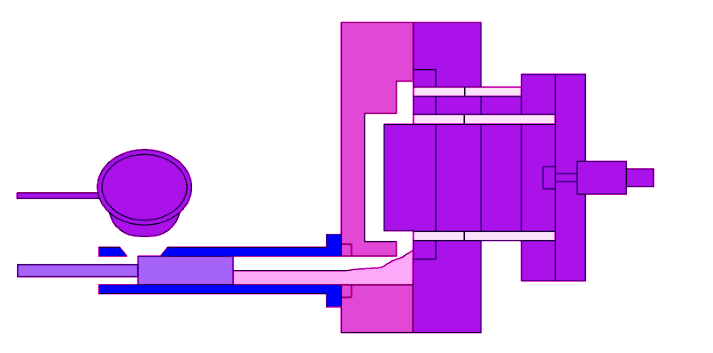

Sand casting and die casting are distinct metal fabrication methods. In sand casting, a sand mold is used to pour molten metal, while die casting involves injecting molten metal under pressure into a steel die.

Die casting is ideal for high-speed, high-volume production that requires precision and smooth surfaces. However, it typically involves higher initial tooling costs and is generally limited to non-ferrous metals.

In contrast, sand casting offers lower tooling costs, greater flexibility in terms of size and materials, and faster lead times. Nonetheless, sand casting results in lower strength and dimensional accuracy, along with rougher surface finishes. The process is also more labor-intensive due to the mold creation.

In summary, die casting is best suited for projects that prioritize precision and high volume, while sand casting is preferred when budget constraints and flexibility are key considerations.

Rasgo	Moldeo en arena	Fundición a presión
Mold Material	Arena	Metal (Steel)
Mold Reusability	Not possible / expendable	Possible / reusable
Pressure	No external pressure	High pressure applied
Production Volume	Low / low-volume (under 1000 a month)	High / high-volume
Cost of Mold	Lower, with aluminum molds typically costing less	Higher, with aluminum molds being more expensive
Startup Time	Fast / typically 1-2 weeks	Slower / typically 6-8 weeks
Espesor de pared	Thicker	Thinner
Precisión	Lower / less dimensional accuracy	Higher / more dimensional accuracy
Acabado de la superficie	Not as good / rough	Excellent / smooth
Complejidad	Difficult for complex parts	Possible and easy for complex parts with high accuracy
Materiales	Can use both ferrous and non-ferrous metals; alloy friendly	Typically limited to non-ferrous metals
Tamaño de la pieza	No limit; more flexibility with size	Limited; generally smaller parts
Defect Correction	Opportunity to correct defects	Limited opportunity to correct defects

Sand Casting in Rapid Prototyping

Sand casting plays a significant role in creación rápida de prototipos, allowing design engineers to quickly evaluate a part’s viability by creating physical representations based on initial designs. This process facilitates corrections and revisions before moving into mass production.

• 3D Printing for Molds: Modern foundries increasingly utilize 3D printing technology to create mold patterns and rapid prototypes. Using computer-aided design (CAD), this approach enables the quick fabrication of prototypes for analysis and testing.
• Rapid Casting: Rapid casting involves creating molds using 3D printed sand. Instead of relying on traditional metal patterns, a digital file is directly translated into a mold, streamlining the process and enhancing efficiency.

Overall, the integration of sand casting with advanced technologies like 3D printing greatly enhances the rapid prototyping capabilities, allowing for faster iterations and improvements in product design.

Conclusión

Sand casting remains a highly relevant and cost-effective manufacturing process for producing metal parts with intricate shapes and designs. Its versatility allows for casting various metals, making it suitable for a broad spectrum of applications. While it offers advantages such as low tooling costs and adaptability to different production volumes, it also presents challenges such as surface finish and dimensional tolerances. Despite these limitations, the benefits of sand casting make it an ideal choice for many projects, including automotive components, machinery parts, and artistic sculptures.

In addition, At Precisión Runsom, we offer a range of casting services, including sand casting and CNC casting, designed to meet diverse customer needs. Our expertise in this area allows us to produce high-quality castings with intricate designs, ensuring precision and reliability. Whether you require prototypes or large-scale production runs, Runsom is dedicated to providing tailored solutions to help bring your projects to fruition.
