Zinc plating has become a cornerstone in protecting metal components from corrosion and wear. From automotive and aerospace to electronics, understanding zinc plating is essential for making informed decisions in various industries. This guide explores how zinc plating works, its different types, and key considerations. By the end, you’ll have a clear understanding of when and why to choose zinc plating for your applications. Let’s dive into the details of this vital industrial technique.
What is Zinc Plating?
Zinc plating, also known as electro-galvanizing or zinc electroplating, is a metal finishing process that protects surfaces from corrosion, rust, and environmental wear. The process involves electroplating, where an electric current deposits zinc ions onto a metal workpiece submerged in an electrolyte solution. The zinc coating acts as a sacrificial anode, corroding preferentially to the base metal and significantly extending the component’s lifespan, even in harsh conditions.
How Zinc Plating Works?
The zinc plating process begins with cleaning the workpiece to remove impurities, followed by immersion in an electrolyte solution containing zinc salts. An electric current is applied, causing the workpiece (acting as the cathode) to attract zinc ions from the solution. These ions form a thin, uniform coating on the surface. The zinc layer not only provides corrosion resistance but also acts as a barrier, protecting the underlying metal from environmental damage.
Steps in the Zinc Plating Process
The zinc plating process involves several critical steps to ensure a high-quality finish:
1. Cleaning (Degreasing)
The workpiece is thoroughly cleaned to remove oils, grease, and surface contaminants. Alkaline cleaning solutions or solvent degreasers are typically used. Proper cleaning is essential to ensure the zinc coating adheres effectively.
2. Rinsing
After cleaning, the workpiece is rinsed to remove any residual cleaning agents. This step prevents contamination of subsequent solutions and prepares the surface for further treatment.
3. Pickling
The workpiece is immersed in an acid bath (usually hydrochloric or sulfuric acid) to remove rust, scale, or oxides. Pickling restores a clean, active metal surface, which is crucial for achieving a high-quality zinc coating.
4. Activation
Before plating, the surface is activated by dipping it in a mild acid solution (e.g., dilute hydrochloric acid). This step removes any remaining passivating films and ensures optimal zinc deposition.
5. Electroplating

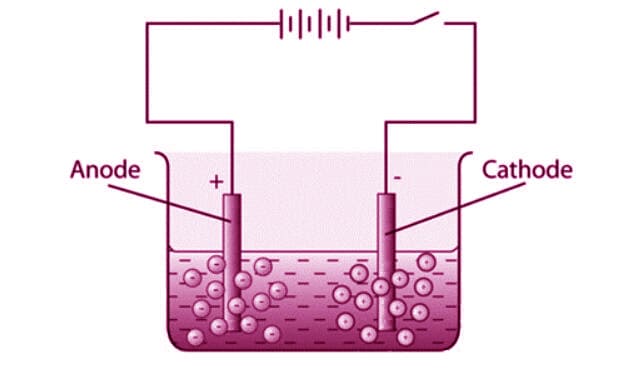

The workpiece is immersed in a zinc electrolyte solution, with zinc anodes also placed in the bath. A direct current is applied, causing zinc ions to deposit onto the workpiece. Factors like current density, temperature, and plating time are carefully controlled to achieve the desired coating thickness and quality.
6. Passivation
To enhance corrosion resistance and add color, a chromate or trivalent chromium solution is applied. In some cases, the coating is sealed to close any pores, further improving its protective properties.
7. Drying
The workpiece is dried using methods like forced air, heat, or centrifugal drying. Proper drying prevents water spots and ensures the coating is ready for use or inspection.
Types of Zinc Plating
Zinc plating can be tailored to specific applications through different types and alloys:
1. Standard Zinc Plating
Standard zinc plating involves electroplating pure zinc onto a metal substrate, such as steel, using a zinc electrolyte solution. This process is cost-effective, easy to apply, and provides basic corrosion resistance. It is commonly used for general-purpose fasteners, hardware, and components that operate in non-harsh environments.
2. Zinc-Nickel Alloy Plating
Zinc-nickel alloy plating consists of a coating with 85-90% zinc and 10-15% nickel. This type of plating offers superior corrosion resistance, performing 5 to 10 times better than pure zinc. It also excels in high-temperature and saline environments, making it ideal for automotive parts.
3. Zinc-Iron Alloy Plating
Zinc-iron alloy plating contains a small percentage of iron (0.3-0.6%) mixed with zinc. This type of plating enhances paint adhesion, suitable for parts that require additional coatings, such as paint or powder coating.
4. Zinc-Cobalt Alloy Plating
Zinc-cobalt alloy plating typically includes 0.3-1% cobalt mixed with zinc. This alloy offers improved hardness and wear resistance compared to pure zinc, along with moderate corrosion resistance. It is commonly used for industrial machinery components and fasteners exposed to friction and wear.

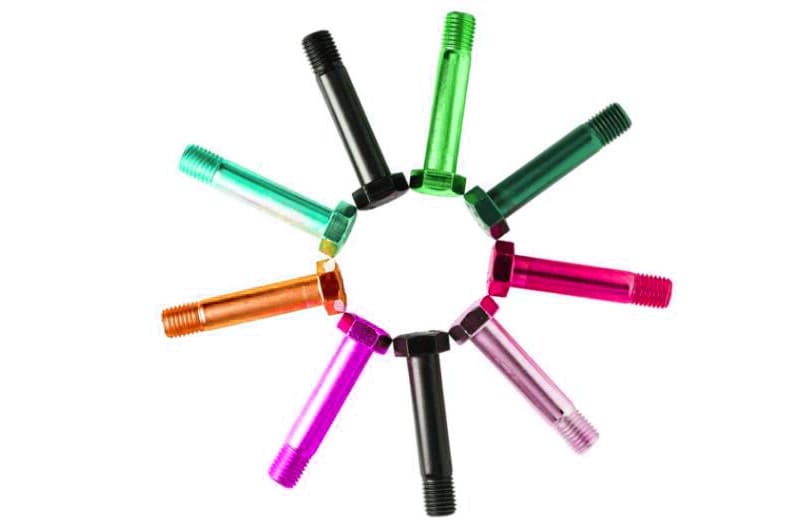

5. Chromate Conversion Coatings (Passivation)
After zinc plating, parts often undergo chromate conversion coating to enhance corrosion resistance and add color. Common types include:
- Yellow Chromate: Provides high corrosion resistance and is widely used in automotive and military applications.
- Blue/Clear Chromate: Forms a thin, transparent layer for moderate protection, often used in electronics.

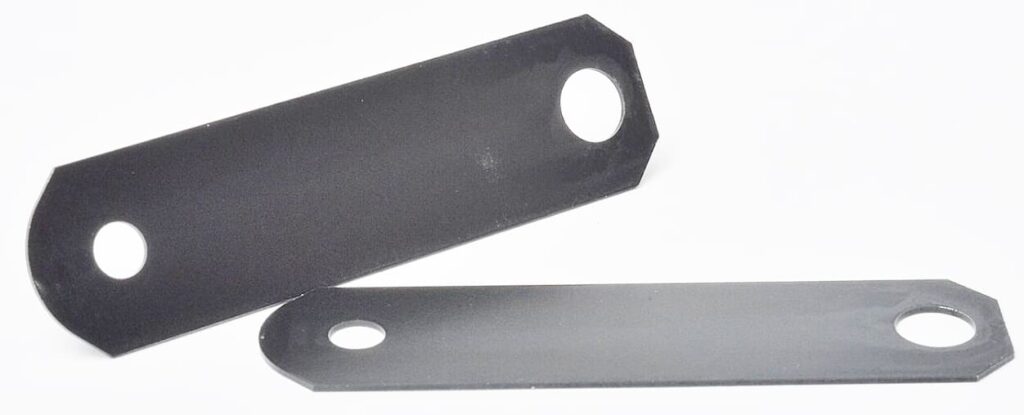

- Black Chromate: Offers an aesthetic finish with decent corrosion resistance, perfect for consumer goods and optical equipment.
- Trivalent Chromate: An environmentally friendly alternative to toxic hexavalent chromium, compliant with RoHS and REACH regulations.
6. Mechanical Zinc Plating
Mechanical zinc plating is a non-electrical process that uses tumbling media and zinc powder to coat parts through mechanical impact. This method avoids hydrogen embrittlement, making it ideal for high-strength steel components. Generally, it finds uses in springs, bolts, and other hydrogen-sensitive parts.
7. Acid vs. Alkaline Zinc Plating
- Acid Zinc Plating: Offers faster deposition and a bright finish, making it suitable for simple shapes like fasteners.
- Alkaline Zinc Plating: Provides better throwing power, ensuring even coverage on intricate parts, and is preferred for complex geometries.
Different Grades of Zinc Plating
When selecting a zinc coating, the thickness and alloy composition play crucial roles in determining its suitability for various applications. Here are the key grades and their characteristics:
Fe/Zn 3 (3 Microns)
This grade features a thin coating of 3 microns. It is suitable for light-duty applications in dry, indoor environments. Examples include decorative items or low-risk electronic components. However, its minimal corrosion resistance makes it unsuitable for outdoor or harsh conditions.
Fe/Zn 5 (5 Microns)
With a thickness of 5 microns, this grade is ideal for indoor components with minimal moisture exposure. It is used in office machinery or consumer electronics. While it offers a balance between cost and performance, it lacks durability for outdoor or corrosive settings.
Fe/Zn 8 (8 Microns)
This grade provides moderate corrosion resistance. It is perfect for parts like fasteners, bolts, and general hardware. These parts are exposed to occasional humidity or mild weather. Additionally, treatments like chromate passivation can enhance its protective properties.
Fe/Zn 12 (12 Microns)
This grade offers a thicker coating of 12 microns. It is suitable for harsh environments, such as automotive parts or outdoor equipment. It provides excellent corrosion resistance against saltwater, road salt, and industrial pollutants. However, it is more expensive.
Fe/Zn 25 (25 Microns–Hot-Dip Galvanizing)
Achieved through hot-dip galvanizing, this grade features a thick coating of 25 microns. It is used in extreme environments, such as marine structures or heavy industrial equipment. While it offers exceptional durability, its high cost and thicker coating may not be suitable for precision parts.
Zinc-Nickel (Zn-Ni) Alloy Coating
Zn-Ni alloy coatings are typically 5 to 15 microns thick. They provide significantly higher corrosion resistance than pure zinc coatings. These coatings are used in high-performance applications, such as automotive brake components or aerospace parts. They can withstand over 1000 hours in salt spray tests, making them a premium choice.
Zinc-Iron (Zn-Fe) Alloy Coating
Zn-Fe alloy coatings are usually 8 to 12 microns thick. They offer good corrosion resistance and paint adhesion. They are commonly used as a pre-treatment for automotive body panels or industrial machinery. Although their corrosion resistance is slightly lower than Zn-Ni alloys, they are more cost-effective and versatile.
| Grade/Type | Thickness (µm) | Corrosion Resistance | Applications |
| Fe/Zn 3 | 3+ | Low | Decorative, low-risk indoor use |
| Fe/Zn 5 | 5+ | Moderate | Indoor machinery, electronics |
| Fe/Zn 8 | 8+ | Moderate-High | Fasteners, general hardware |
| Fe/Zn 12 | 12+ | High | Automotive, outdoor equipment |
| Fe/Zn 25 (Hot-Dip) | 25+ | Very High | Marine, bridges, heavy industry |
| Zn-Ni Alloy | 5-15 | Very High | Aerospace, automotive, military |
| Zn-Fe Alloy | 8-12 | High | Automotive body panels |
Key Parameters in Zinc Plating
It’s crucial to consider the key parameters that affect its performance, such as coating thickness and alloy composition. These parameters directly influence the materials that can be effectively coated with zinc.
1. Coating Thickness
Coating thickness directly impacts corrosion resistance. Thicker coatings provide better protection but may increase costs. For example, Fe/Zn 5 is suitable for indoor environments, while Fe/Zn 12 is ideal for harsh conditions like automotive applications. Therefore, selecting the right thickness involves balancing performance, cost, and functional requirements.
2. Alloy Composition
Alloy composition affects corrosion resistance. Pure zinc coatings are general-purpose, while Zn-Ni alloys offer superior resistance. For instance, Zn-Ni coatings withstand over 1000 hours in salt spray tests, making them ideal for high-performance applications. Thus, alloy choice depends on specific performance needs.
3. Surface Preparation
Proper surface preparation ensures good adhesion. This involves degreasing, acid pickling, and activation. Poor preparation can lead to adhesion issues. Therefore, thorough preparation is critical for a high-quality finish.
4. Plating Method
The plating method affects coating quality. Electroplating offers precise thickness control, while hot-dip galvanizing is used for thick coatings. Mechanical plating is suitable for small parts. Therefore, the method choice depends on application requirements.
5. Post-Treatment (Passivation)
Post-treatment enhances corrosion resistance and appearance. Chromate and non-chromate passivations are common. For example, black chromate passivation is used for military hardware due to its high resistance and dark finish. Thus, passivation is crucial for extending coating lifespan.
6. Adhesion Quality
Adhesion quality refers to the bond strength between the coating and substrate. Researchers test adhesion using bend, tape, or cross-cut tests. Ensuring proper surface preparation and optimized plating parameters is essential for strong adhesion.
7. Corrosion Resistance
Corrosion resistance is influenced by thickness, alloy composition, and post-treatment. For instance, Fe/Zn 12 offers excellent resistance for outdoor applications, while Zn-Ni coatings provide higher performance in extreme environments. Therefore, corrosion resistance is a key indicator of coating quality.
Materials Compatible with Zinc Plating
1. Carbon Steel: Commonly used in automotive and construction due to its strength and affordability. Zinc plating improves its rust resistance, making it ideal for fasteners and structural parts, and helps extend their lifespan.
2. Low-Alloy Steel: Stronger than carbon steel, and zinc plating enhances its corrosion resistance, making it suitable for demanding applications like automotive chassis. However, extra surface preparation may be needed for proper adhesion.
3. Cast Iron: Durable but prone to rust, so zinc plating is often applied for outdoor use. Due to its porous surface, thorough cleaning and pretreatment are essential for effective plating.
4. Stainless Steel: Naturally corrosion-resistant, but zinc plating can provide extra protection in specific cases, such as preventing galvanic corrosion. Specialized processes are usually required.
5. Brass and Bronze: Often zinc-plated for decorative purposes to improve appearance and corrosion resistance. However, precise control is necessary to avoid issues like poor adhesion.
6. Aluminum: Requires special preparation, such as zincating, to remove its oxide layer before plating. Commonly used in aerospace and automotive industries.
7. Copper: Can be zinc-plated to enhance corrosion resistance and aesthetics. However, careful control is needed due to copper’s reactivity.
8. Titanium: Rarely zinc-plated due to its natural strength and corrosion resistance. When used, precise control is crucial for specialized applications.
Pros and Cons of Zinc Plating
However, like any process, it has its advantages and disadvantages. Below is a detailed explanation of the pros and cons of zinc plating, presented in paragraph form:
Pros:
- Excellent corrosion resistance in mild to moderate environments.
- Cost-effective for high-volume production.
- Versatile, with compatibility across various materials and applications.
- Enhances aesthetic appeal with options for colored finishes.
- Improves adhesion for paint and additional coatings.
Cons:
- Limited durability in harsh environments like marine or chemical exposure.
- Risk of hydrogen embrittlement in high-strength steels.
- Soft coatings prone to wear and abrasion.
- Dimensional changes may require additional machining.
- Limited resistance to high temperatures (above 200°C).
Common Applications of Zinc Plating
Zinc plating is commonly used across various industries for its ability to resist corrosion and its affordability. Here are some typical applications:
Automotive Industry
In the automotive field, coatings that prevent rust are crucial for protecting parts like fasteners, brake components, and underbody elements. These coatings help extend the lifespan of parts and ensure they perform well, especially in harsh weather conditions.
Construction Industry
In construction, metal coatings are applied to structural parts such as beams and brackets to prevent rust and increase their durability. These coatings also protect outdoor fixtures like fencing and guardrails from environmental damage.
Electronics and Electrical Industry
In electronics, treatments that prevent rust are used on connectors and terminals to maintain good electrical conductivity and protect against corrosion. These coatings also help shield metal casings from moisture and other environmental factors.
Aerospace Industry
The aerospace industry uses protective coatings on aircraft parts and fasteners to ensure they remain reliable and durable in extreme conditions. These treatments also help protect satellite components from wear and tear.
Consumer Goods
Everyday items like door handles and tools often receive protective coatings to prevent rust and improve their appearance, ensuring they remain functional and visually appealing.
Industrial Machinery
Parts of industrial machinery, such as gears and valves, are treated with coatings that prevent rust to reduce wear and extend their lifespan. This helps them withstand exposure to chemicals and liquids.
Marine Industry
In marine environments, coatings that resist corrosion are essential for protecting boat fittings and offshore structures from the damaging effects of saltwater, ensuring they last longer.
Military and Defense
The military and defense sector uses protective coatings on equipment and vehicle parts to ensure they remain reliable in demanding conditions. These coatings enhance durability and resistance to harsh environments.
Zinc Plating vs. Hot-Dip Galvanizing
When comparing zinc plating and hot-dip galvanizing, it’s important to consider their processes, applications, and performance. Zinc plating uses an electrical current to deposit a thin, smooth layer of zinc onto metal surfaces, typically ranging from 5 to 25 microns in thickness. This method is cost-effective and ideal for small parts, automotive components, electronics, and consumer goods. While it provides good protection in mild to moderate environments, its thinner coating may wear over time, making it less suitable for highly corrosive conditions.
Hot-dip galvanizing involves immersing metal in molten zinc, resulting in a thick, robust coating ranging from 45 to 200 microns. This method excels in harsh environments, such as marine or industrial settings, offering superior corrosion resistance and long-lasting protection, often for decades. While it is more expensive and less suitable for small or intricate parts due to its thick coating, it is the preferred choice for large structures, outdoor constructions, and marine applications.
| Aspect | Zinc Plating | Hot-Dip Galvanizing |
| Process | Electroplating | Immersion in molten zinc |
| Coating Thickness | 5-25 microns | 45-200 microns |
| Appearance | Smooth, shiny | Rough, matte, spangled |
| Corrosion Resistance | Good (mild to moderate environments) | Excellent (harsh environments) |
| Cost | Low | High |
| Applications | Small parts, electronics, tools | Large structures, outdoor use |
| Durability | Moderate | Very high |
Conclusion
In general, zinc plating is a versatile, cost-effective solution for industries requiring corrosion protection. It uses an electrochemical process to apply tailored finishes like blue zinc or black oxide, ideal for materials such as steel and cast iron. While not as durable as hot-dip galvanizing or as aesthetically permanent as stainless steel, its affordability and adaptability make it perfect for fasteners, automotive parts, and electronics.
Additionally, Runsom Precision can further enhance your metal finishing strategy by offering specialized zinc plating solutions tailored to specific industrial needs, ensuring that your components meet the highest standards of durability and performance.
